Development of a novel artificial intelligence algorithm to detect pulmonary nodules on chest radiography

Mitsunori Higuchi, Takeshi Nagata, Kohei Iwabuchi, Akira Sano, Hidemasa Maekawa, Takayuki Idaka, Manabu Yamasaki, Chihiro Seko, Atsushi Sato, Junzo Suzuki, Yoshiyuki Anzai, Takashi Yabuki, Takuro Saito, Hiroyuki Suzuki

Abstract

Background: In this study, we aimed to develop a novel artificial intelligence (AI) algorithm to support pulmonary nodule detection, which will enable physicians to efficiently interpret chest radiographs for lung cancer diagnosis.

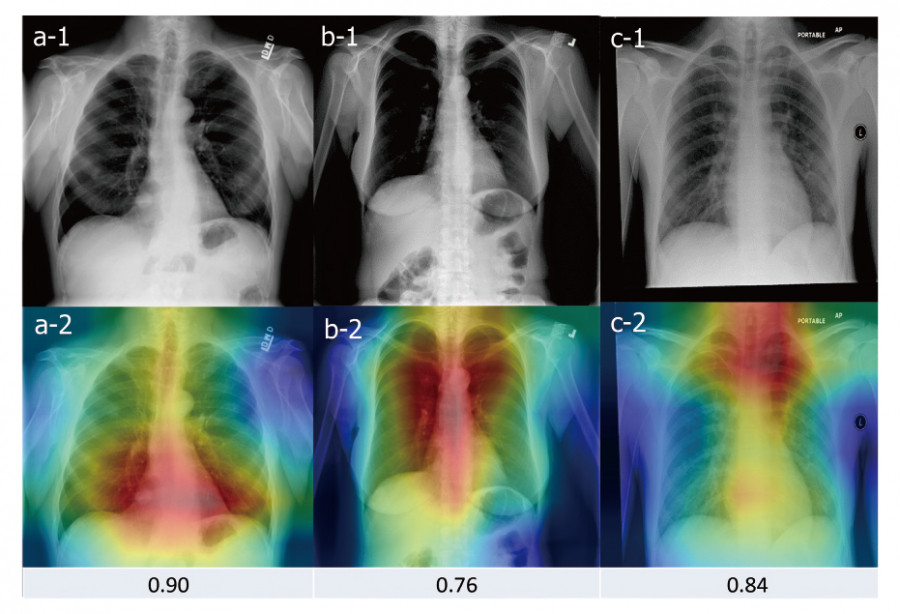

Methods: We analyzed chest X-ray images obtained from a health examination center in Fukushima and the National Institutes of Health (NIH) Chest X-ray 14 dataset. We categorized these data into two types: type A included both Fukushima and NIH datasets, and type B included only the Fukushima dataset. We also demonstrated pulmonary nodules in the form of a heatmap display on each chest radiograph and calculated the positive probability score as an index value.

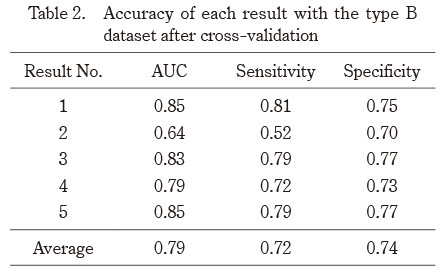

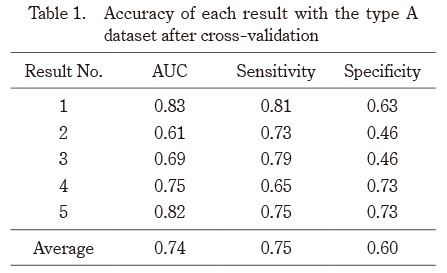

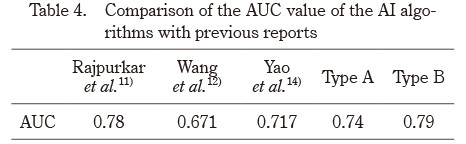

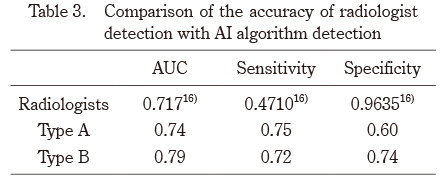

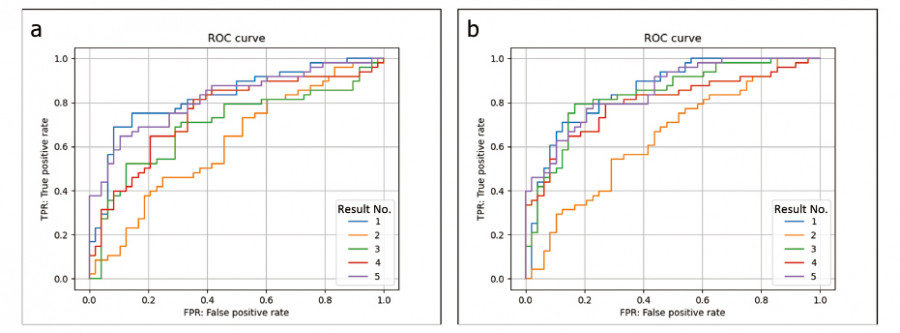

Results: Our novel AI algorithms had a receiver operating characteristic (ROC) area under the curve (AUC) of 0.74, a sensitivity of 0.75, and a specificity of 0.60 for the type A dataset. For the type B dataset, the respective values were 0.79, 0.72, and 0.74. The algorithms in both the type A and B datasets were superior to the accuracy of radiologists and similar to previous studies.

Conclusions: The proprietary AI algorithms had a similar accuracy for interpreting chest radiographs when compared with previous studies and radiologists. Especially, we could train a high quality AI algorithm, even with our small type B data set. However, further studies are needed to improve and further validate the accuracy of our AI algorithm.

The content of research paper

References

1. Gulshan V, Peng L, Coram M, et al.　Development and validation of a deep learning algorithm for detection of diabetic retinopathy in retinal fundus photographs. JAMA, 316:2402-2410, 2016.
2. Grewal M, Srivastava MM, Kumar P, Varadarajan S. RADNET:Radiologist level accuracy using deep learning for hemorrhage detection in CT scans. arXiv preprint, arXiv:1710.04934, 2017.
3. Howlader N, Noone AM, Krapcho M, et al. SEER Cancer Statistics Review, 1975-2010, National Cancer Institute. Bethesda, MD, https://seer.cancer.gov/archive/csr/1975_2010/. Accessed 14 June 2013.
4. Aberle DR, Adams AM, Berg CD, et al. The National Lung Screening Trial Research Team. Reduced lung-cancer mortality with low-dose computed tomographic screening. N Engl J Med, 365:395-409, 2011.
5. Horeweg N, Scholten ET, de Jong PA, et al. Detection of lung cancer through low-dose CT screening (NELSON):A prespecified analysis of screening test performance and interval cancers. Lancet Oncol, 15:1342-1350, 2014.
6. Greene R. Francis H. Williams, MD:Father of chest radiology in North America. Radiographics, 11:325-332, 1991.
7. Yoo H, Lee SH, Arru CD, et al. AI-based improvement in lung cancer detection on chest radiographs:Results of a multi-reader study in NLST dataset. Eur Radiol, 31:9664-9674, 2021.
8. van Beek EJ, Mirsadraee S, Murchison JT. Lung cancer screening:Computed tomography or chest radiographs? World J Radiol, 7:189-193, 2015.
9. Chen S, Han Y, Lin J, Zhao X, Kong P. Pulmonary nodule detection on chest radiographs using balanced convolutional neural network and classic candidate detection. Artif Intell Med, 107: 101881, 2020.
10. Liang CH, Liu YC, Wu MT, Garcia-Castro F, Alberich-Bayarri A, Wu FZ. Identifying pulmonary nodules or masses on chest radiography using deep learning:External validation and strategies to improve clinical practice. Clin Radiol, 75:38-45, 2020.
11. Rajpurkar P, Irvin J, Zhu K, et al. CheXNet: Radiologist-level pneumonia detection on chest X-rays with deep learning. arXiv preprint, arXiv:1711.05225, 2017.
12. Deng J, Dong W, Socher R, Li LJ, Fei-Fei L. ImageNet:A large-scale hierarchical image database. In:Computer Vision and Pattern Recognition, 248-255, 2009.
13. Wang X, Peng Y, Lu L, Lu Z, Bagheri M, Summers RM. ChestX-ray8:Hospital-scale chest x-ray database and benchmarks on weakly-supervised classification and localization of common thorax diseases. arXiv preprint, arXiv:1705.02315, 2017.
14. Yao L, Poblenz E, Dagunts D, Covington B, Bernard D, Lyman K. Learning to diagnose from scratch by exploiting dependencies among labels. arXiv preprint, arXiv:1710.10501, 2017.
15. https://eirl.ai/eirl-chest_nodule/
16. Zhou B, Khosla A, Lapedriza A, Oliva A, Torralba A. Learning deep features for discriminative localization. In:Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2021-2929, 2016.
17. Gavelli G, Giampalma E. Sensitivity and specificity of chest X-ray screening for lung cancer: Review article. Cancer, 89:2453-2456, 2000.
18. Quekel LG, Kessels AG, Goei R, van Engelshoven JM. Miss rate of lung cancer on the chest radiograph in clinical practice. Chest, 115:720-724, 1999.
19. Manser R, Lethaby A, Irving LB, et al. Screening for lung cancer. Cochrane Database Syst Rev, 2013:CD001991, 2013.
20. Aberle DR, Adams AM, Berg CD, et al.; The National Lung Screening Trial Research Team. Reduced lung-cancer mortality with low-dose computed tomographic screening. N Eng J Med, 365:395-409, 2011.
21. Abramoff MD, Lavin PT, Birch M, Shah N, Folk JC. Pivotal trial of an autonomous AI-based diagnostic system for detection of diabetic retinopathy in primary care officers. NPJ Digit Med, 1:39, 2018.
